• 插夾式虎鉗_5吋

插夾式虎鉗_5吋

型號 : WEV-5CS200

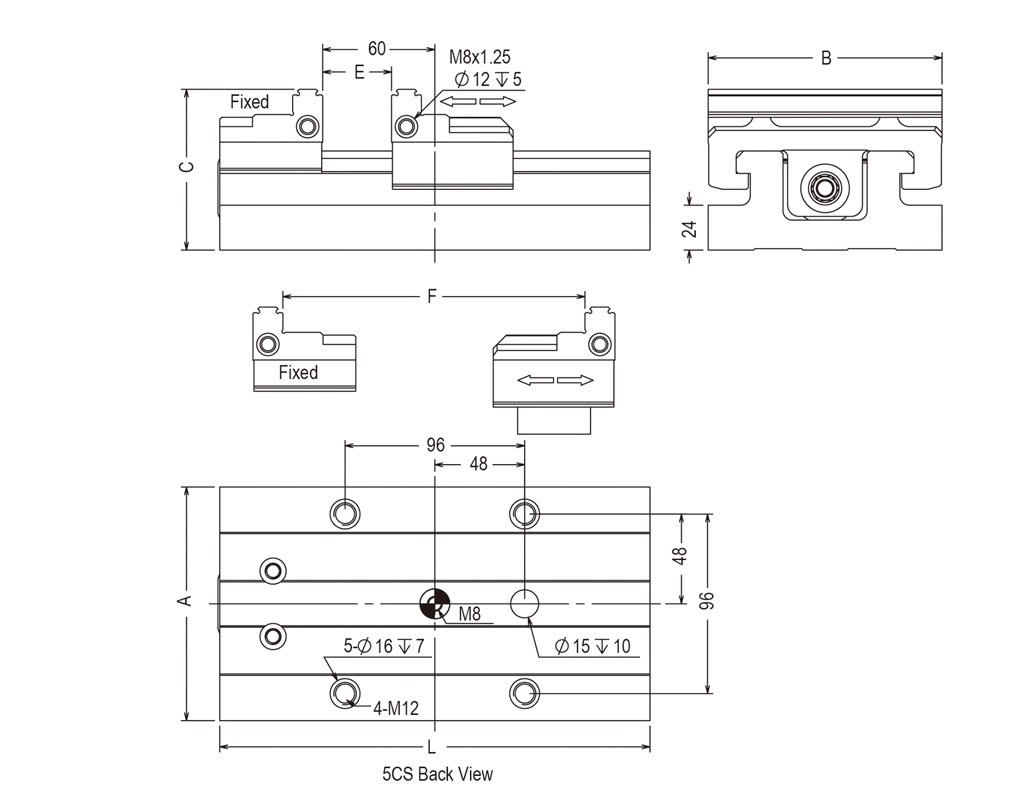

尺 寸 圖

Clamping Range Clamping Force Torque Vise Assembly Set/Kg
Technical Data A B C L E F
5" Grip Vise WEV-5CS200 125 125 86 230 0-115 90-200 15.6kN/85Nm Max.100Nm 10.6
