• 插夾式虎鉗_5吋

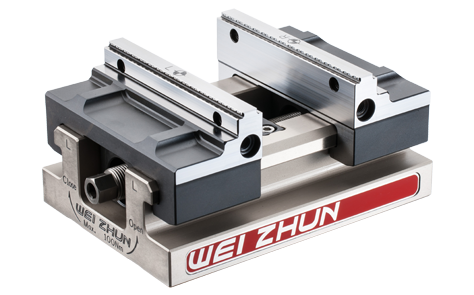

插夾式虎鉗_5吋

型號 : WEV-5AS155

尺 寸 圖

Clamping Range Clamping Force Torque Vise Assembly Set/Kg
Technical Data A B C L E F
5" Self-Centering Vise WEV-5AS155 125 125 86 180 0-90 80-155 15.6kN/85Nm Max.100Nm 9.0
5" Large Self-Centering Vise WEV-5AL205 125 125 86 230 0-140 80-205 15.6kN/85Nm Max.100Nm 10.6
