• 插夾式虎鉗_3吋

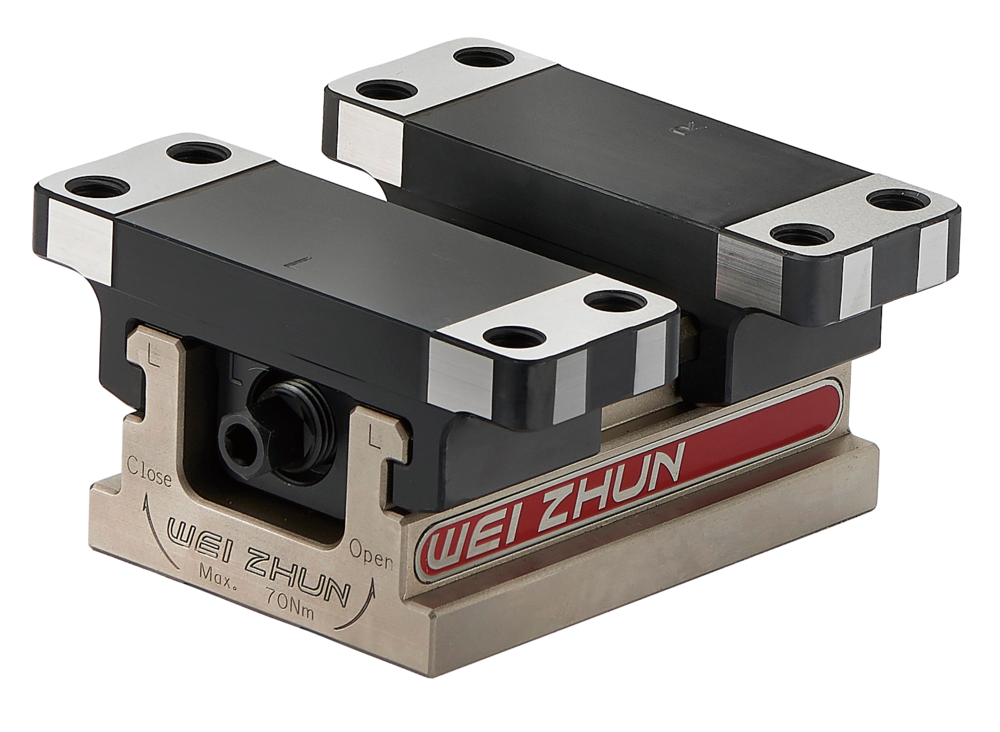

插夾式虎鉗_3吋

型號 : WEV-3DS110

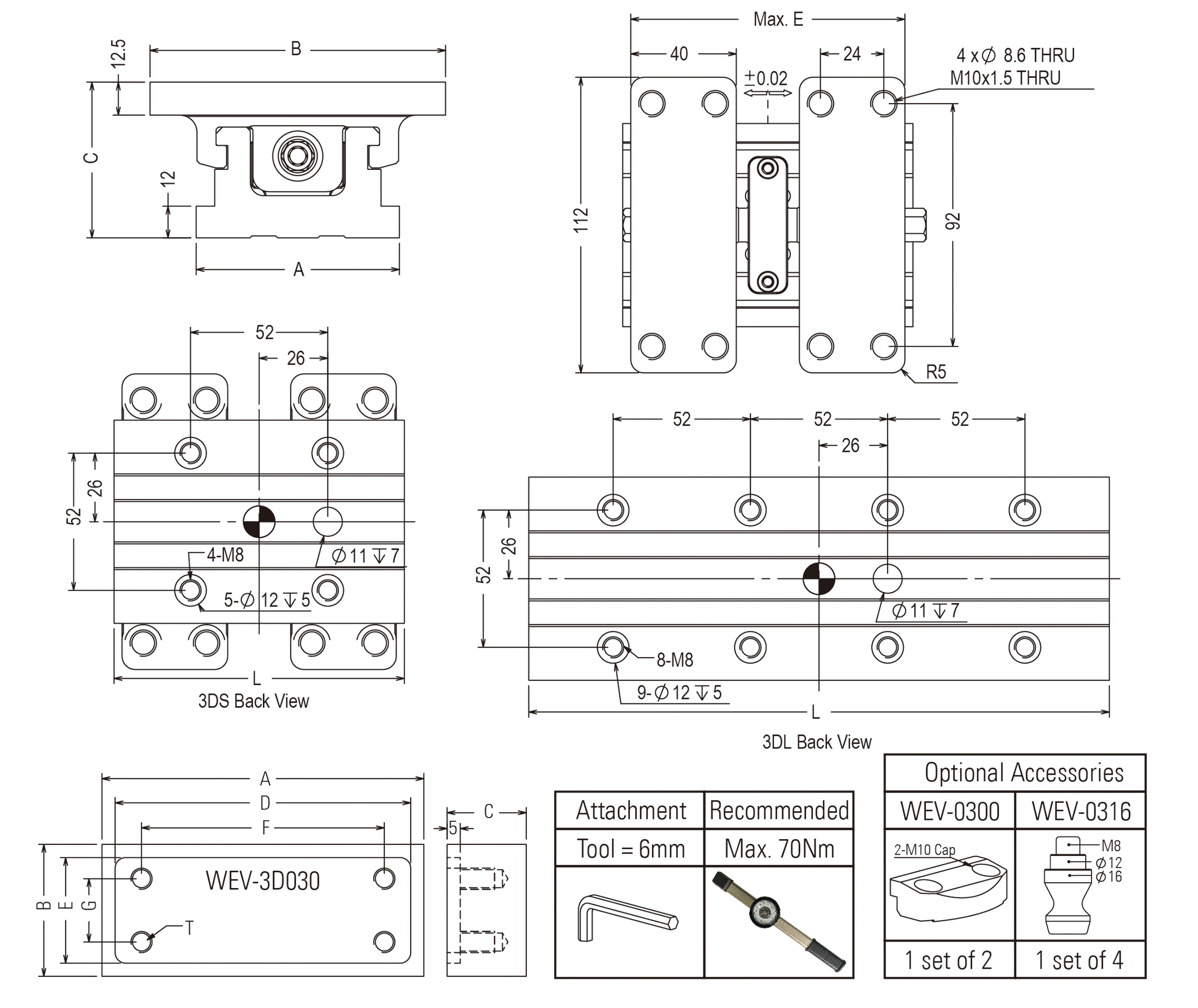

尺 寸 圖

Clamping Range Clamping Force Torque Vise Assembly Set/Kg
Technical Data A B C L E
3" Self-Centering Vise WEV-3DS110 77 112 59 110 125 13kN/60Nm Max.70Nm 3.1
3" Large Self-Centering Vise WEV-3DL220 77 112 59 220 235 13kN/60Nm Max.70Nm 4.7

Technical Data A B C D E F G
T Material Set/Kg
3" Soft Jaws WEV-3D030 122 50 30 112 40 92 24 M8 S50C 2.5
