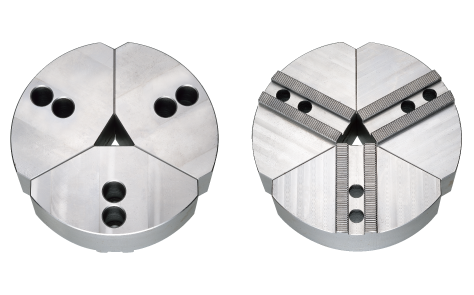

全包(或扇型)油壓生爪
尺 寸 圖
規 格 表
單位:mm
|
型號 Model |
L |
W |
H |
A |
P1 |
P2 |
B |
Screw holes |
Ø |
毛重 Kg/set |
|
WZ-W06H42 |
73 |
130 |
42 |
12 |
15 |
20 |
31 |
M10 |
Ø165 |
6.42 |
|
WZ-W06H50 |
50 |
7.59 |
||||||||
|
WZ-W06H60 |
60 |
9.06 |
||||||||
|
WZ-W08H42 |
95 |
165 |
42 |
14 |
24 |
25 |
35 |
M12 |
Ø210 |
10.5 |
|
WZ-W08H50 |
50 |
12.45 |
||||||||
|
WZ-W08H60 |
60 |
14.88 |
||||||||
|
WZ-W10H50 |
110 |
200 |
50 |
16 |
30 |
30 |
40 |
M12 |
Ø254 |
18.33 |
|
WZ-W10H60 |
60 |
21.9 |
||||||||
|
WZ-W12AH50 |
133 |
240 |
50 |
18 |
39 |
30 |
50 |
M14 |
Ø305 |
20.05 |
|
WZ-W12AH60 |
60 |
22.5 |
||||||||
|
WZ-W12BH50 |
133 |
240 |
50 |
21 |
39 |
30 |
50 |
M16 |
Ø305 |
20.05 |
|
WZ-W12BH60 |
60 |
22.5 |
註1:訂購填寫方式 例:6” * H42→WZ-W06H42*組數
註2:材質有分中碳鋼與鋁合金兩種
