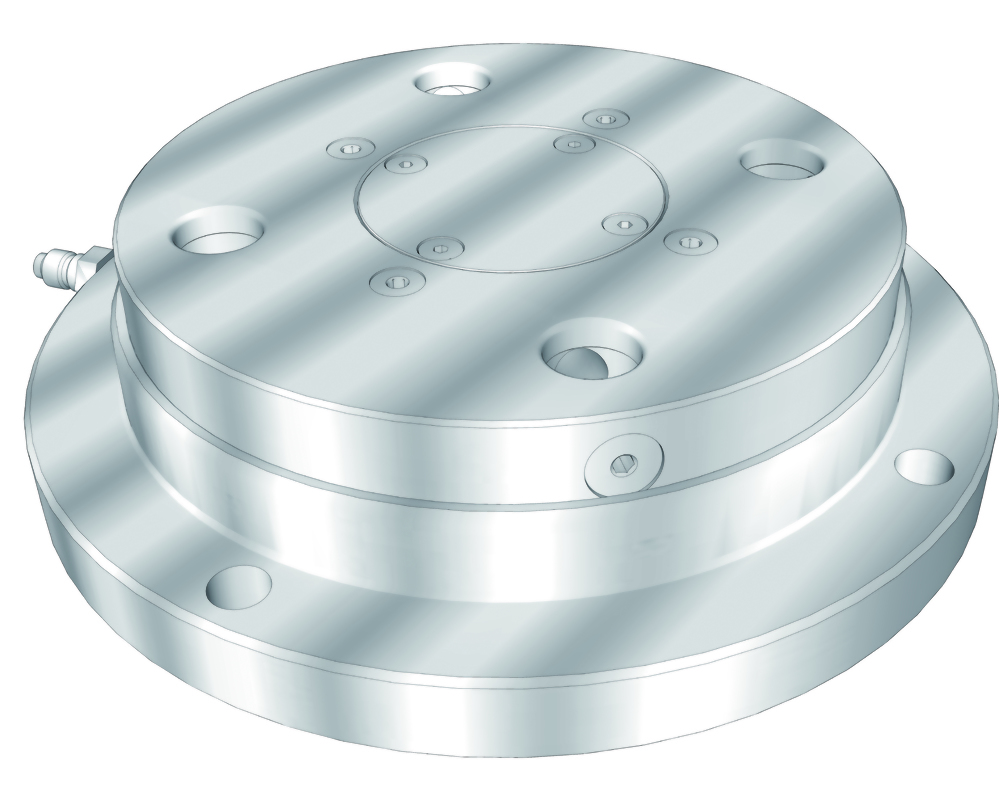

快速交換盤 -52P、96P
型號 :
WE-350300、WE-350500
尺 寸 圖
| 1 | Technical Data | Dimensions | Clamping Force | Repeatability | Compressed Air | Set/Kg |
| Quick Change Plate-52P | WE-350300 | 169x60mm | 10000N | 0.005mm | 6-10 Bar | 6.5 |
| 1 | Technical Data | Dimensions | Clamping Force | Repeatability | Compressed Air | Set/Kg |
| Quick Change Plate-96P | WE-350500 | 236x62mm | 12000N | 0.005mm | 6-10 Bar | 14.6 |
